Connection to Impala

To connect an Apache Impala cluster to the DQC Platform, you provide the host and port of its HTTPS endpoint — typically an Apache Knox gateway — the database, the HTTP path of the Impala service, and the credentials of an LDAP user with read access. Every table in the database then becomes available for data quality checks.

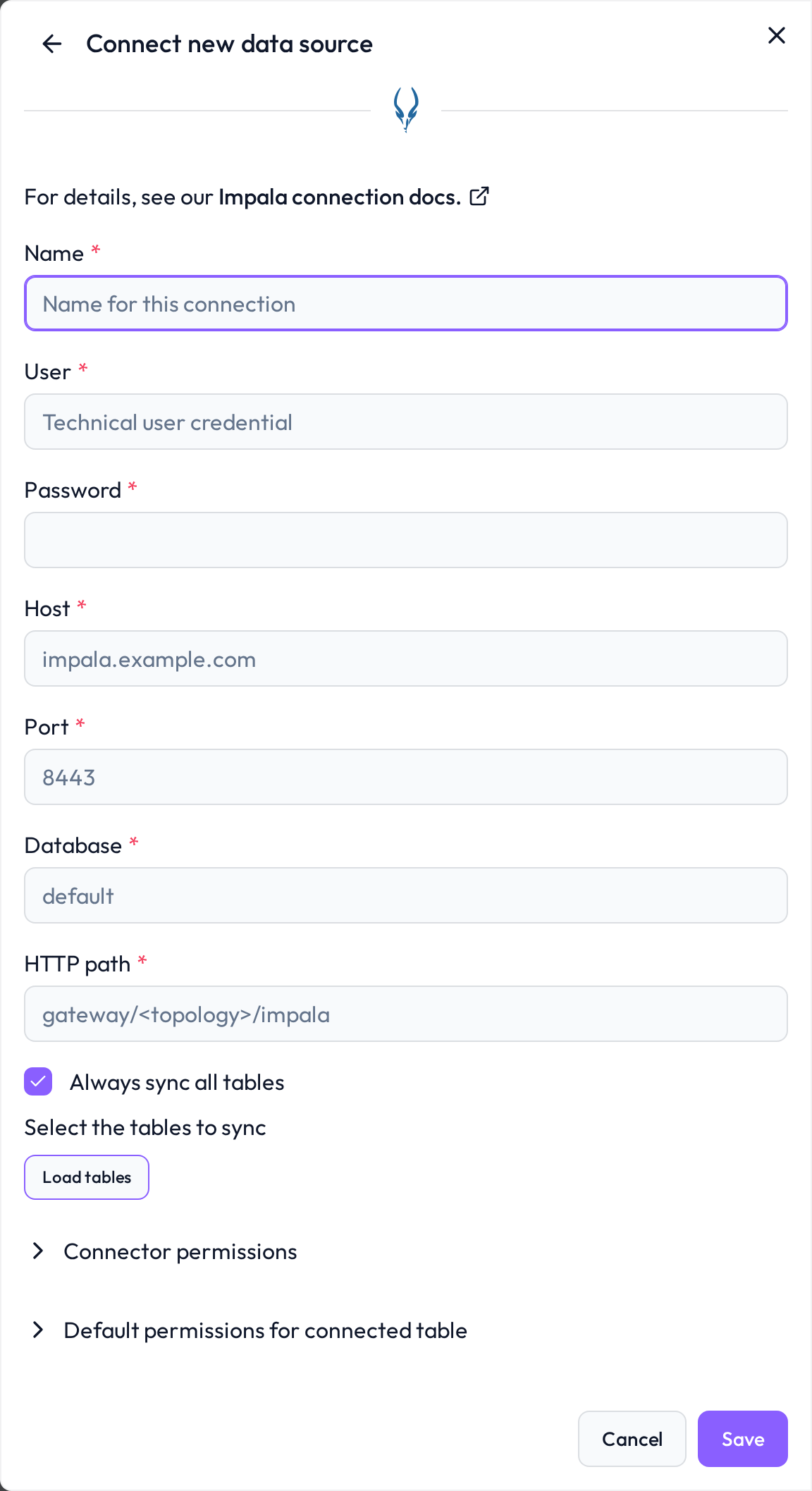

Add an Impala connector

To begin:

Go to the Connectors > Data sources screen
Click the Impala tile
Enter the connection parameters described below

Required connection information

Field	Example	Description
Name	`Sales Impala`	A custom name to identify this connector inside DQC
User	`dqc_reader`	LDAP user with read permissions on the target database
Password	`{your password here}`	Password of the LDAP user
Host	`impala.example.com`	Hostname of the Impala endpoint — usually the Knox gateway. Bound to the connector and cannot be changed after creation.
Port	`8443`	Port of the HTTPS endpoint; `8443` for a standard Knox gateway. Bound to the connector.
Database	`default`	Name of the database to connect to. Defaults to `default`. Bound to the connector and cannot be changed after creation.
HTTP path	`gateway/<topology>/impala`	Path of the Impala service behind the gateway, where `<topology>` is your Knox topology name. Bound to the connector.

Authentication and transport

Authentication is LDAP — user and password are both required.
The connection always runs over HTTP transport with TLS. This is not optional: a connection without TLS is rejected when the connector is saved.
The server certificate is verified, so the endpoint needs a certificate DQC trusts.
Access through Apache Knox is the expected setup — point Host and Port at the gateway and name the Impala service in HTTP path.

Permissions and network

Create a dedicated read-only LDAP user (for example dqc_reader) with SELECT permission on exactly the databases and tables that should be quality-checked
DQC validates the connection by listing tables — the user has to be able to see them
If the cluster enforces IP allow-listing, whitelist the DQC platform's outbound IP

If the cluster is not reachable from the internet, connect it through the DQC Proxy.

What gets imported

Every table the user can read in the configured database becomes a DQC table
DQC only reads: every query it runs against Impala is read-only, and nothing is written back to the cluster
Host, port, database and HTTP path are bound to the connector and cannot be changed afterwards — create a new connector to point at a different cluster or database

Connect and assign permissions

After saving, DQC validates the credentials, lists the available tables and lets you pick which ones to expose. To control who can use the connector inside DQC, see Data source access permissions.

Troubleshooting

When DQC cannot connect to Impala or load its tables, it shows the reason with a short fix and links to this section. Look up the beginning of the message:

Message in DQC	Likely cause	Fix
`Authentication failed for Impala user …`	LDAP rejected the user	Check user name and password
`Unable to connect to Impala database. Reason: … HTTP code 401`	The gateway rejected the credentials	Check user name and password
`Unable to connect to Impala database. Reason: … HTTP code 404`	Wrong HTTP path	Enter the path of the Impala service behind the gateway, for example `gateway/<topology>/impala`
`Connection to …:… not possible. …`	Wrong host or port, or a firewall blocks the DQC IP address	Check host and port, and whitelist the DQC Platform IP address
`Unable to establish TLS connection to Impala. …`	DQC verifies the server certificate and found it untrusted, for example self-signed or issued for another host name	Use a certificate of a publicly trusted certificate authority for the host name you entered
`TLS is required for Impala connections` and similar	A required transport setting is off	Keep TLS, certificate verification and HTTP transport on
`Could not connect to the data source. Check the connection details …`	DQC could not classify the error of the connection test	Check every field of the form, the network access and the permissions described above
`Table not accessible anymore …`	The table was renamed, moved or deleted, or the user lost access to it after the last sync	Restore the table or the access, then resync the connector

Synchronization failed: when a sync cannot connect, the connector shows Failed on the Data sources screen and the badge links to this section. Edit the connector and click Load tables or Save: DQC tests the connection again and shows the current reason.
Tables missing from the table list: DQC lists only tables the user may read in Ranger or Sentry.
Still stuck? Write to support@dqc.ai with the connector name, the time of the attempt and the full message.
