Connection to Amazon Redshift

To connect Amazon Redshift to the DQC Platform, you need to provide your cluster connection details and configure IAM permissions. This article guides you through the full setup.

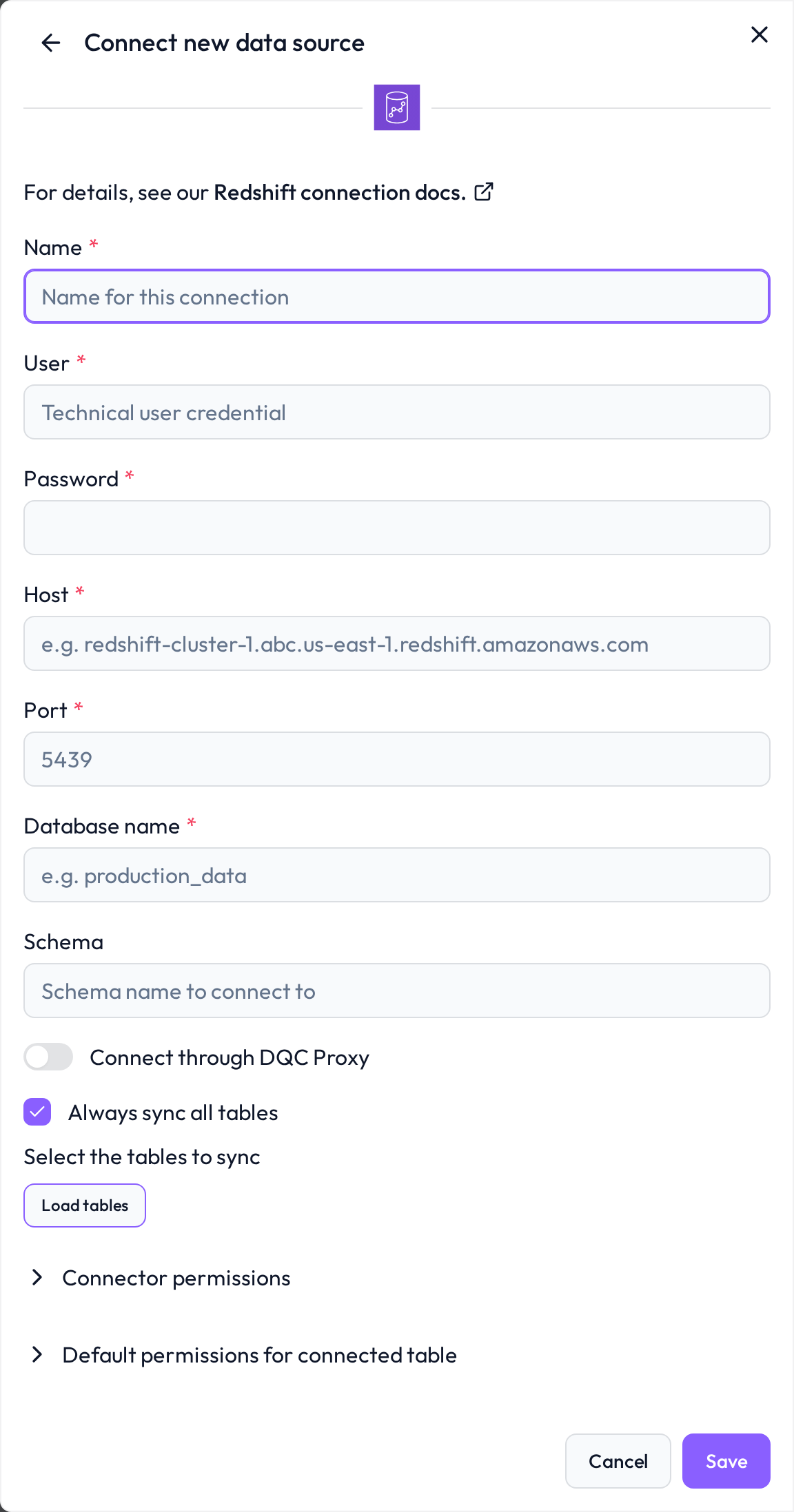

Add an Amazon Redshift connector

To begin:

Open the Data Connectors screen
Click the Amazon Redshift button
Fill in the connection parameters as listed below

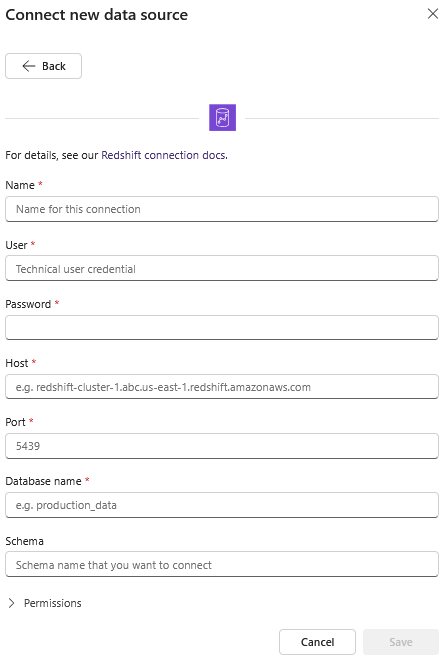

Start the process by selecting the Redshift data source

Required connection information

Field	Example	Description
Name	`My production data`	Internal label for the connector
User	`user_name`	Redshift user with read access
Password	`my_password`	Password for the above user
Host	`redshift-cluster-1.abc.us-east-1.redshift.amazonaws.com`	Found under Configuration > Endpoint in your Redshift cluster settings
Port	`5439`	Default port for Redshift
Database name	`my_database`	Target database to query
Schema	`public`	Schema containing the relevant tables

Configure IAM permissions

To support enhanced Redshift integration (e.g. Redshift Spectrum or federated roles), follow this setup:

Step 1: Create a custom IAM policy

Include the following permissions:

{
  "Effect": "Allow",
  "Action": [
    "redshift:GetClusterCredentials",
    "redshift:DescribeClusters",
    "redshift-data:ExecuteStatement"
  ],
  "Resource": "*"
}

Step 2: Create and attach IAM role

Go to IAM > Roles
Click Create role
Select Redshift as trusted entity
Attach the custom policy from step 1
Review and create the role

Step 3: Associate role with Redshift cluster

In the AWS Console:

Go to Amazon Redshift > Clusters
Open your cluster and select the Properties tab
Click Associate IAM Roles and choose the role created above

Whitelist the DQC Platform static IP

Make sure your network/firewall configuration or security group allows connections from:

3.123.94.228

Notes

We recommend using a dedicated Redshift user with read-only access
For secure connections, use SSL-enabled endpoints
Learn more: Supported data sources, Connection to AWS S3, Connection to Snowflake
