Connection to Oracle Database

Oracle Database is a first-class connector on the DQC Platform. To connect it, provide the credentials of a read-only database user, the service name of the target database, and allow the platform's static IP address. This guide covers every step, including the two Oracle specifics that most often cause a failed first connection: the service name and the uppercase schema.

Add an Oracle connector

To get started:

Go to the Data Connectors screen
Click the Oracle button

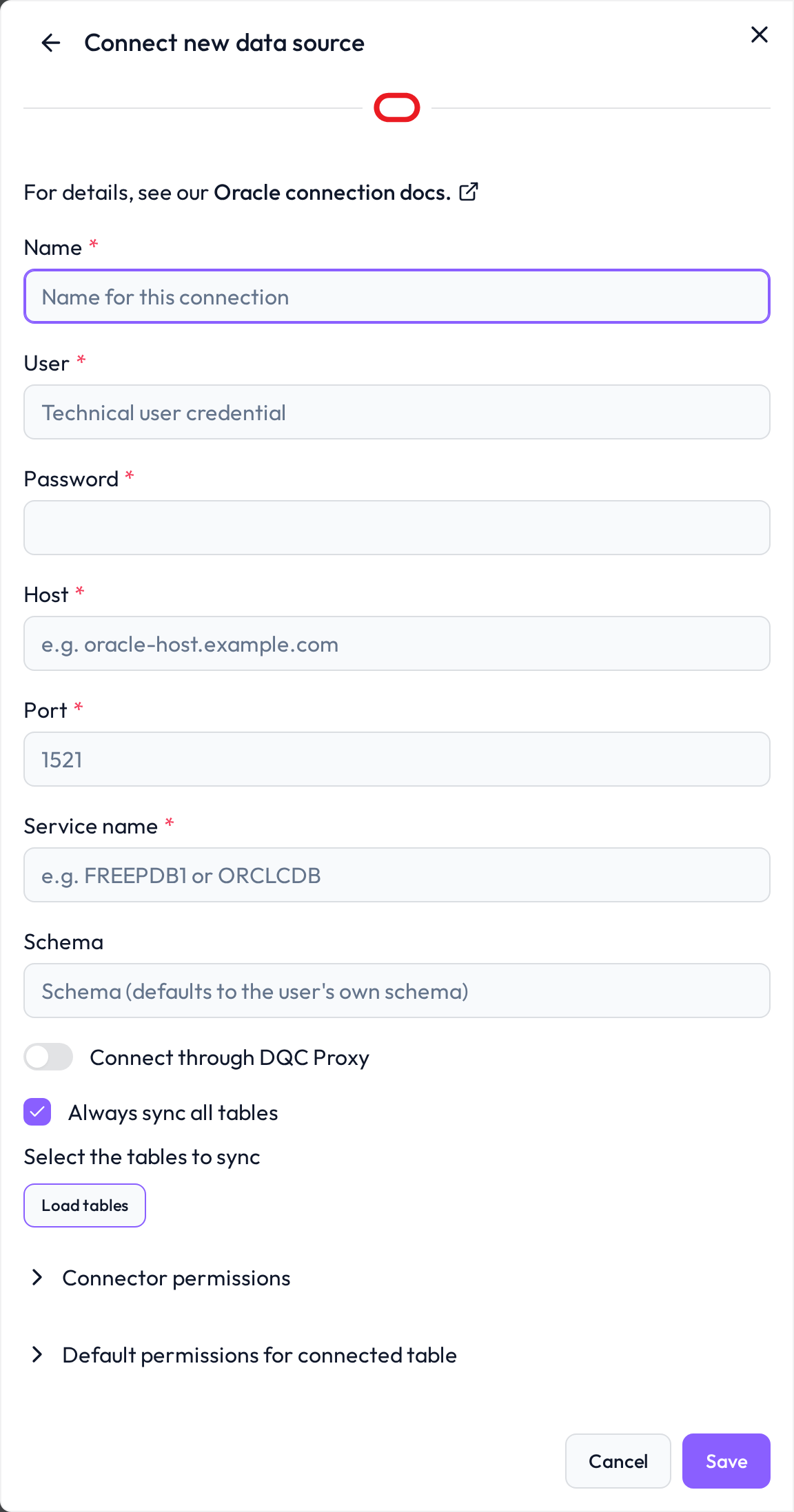

Enter the connection details described below
Test and save the connection

Required connection information

Field	Example	Description
Name	Finance_DB	A descriptive name for this connection
User	DQCREADER	Oracle user with read-only access
Password	your_password_here	Password for the specified user
Host	oracle.company.internal	DNS name or IP address of the Oracle server
Port	1521	Default Oracle listener port (adjust if needed)
Service name	ORCLPDB1	The service name of the target database — not an SID and not a file path
Schema	FINANCE (optional)	Default schema for unqualified table names; must be uppercase

Service name, not SID

The connector addresses the database by its service name. If you only know the SID, ask your DBA for the corresponding service name, or read it from the listener:

lsnrctl services

A wrong or unknown service name is rejected by the listener before authentication happens, which surfaces as ORA-12514. A host name that cannot be resolved surfaces as ORA-12545, and an unreachable listener as ORA-12541.

Schema names must be uppercase

Oracle stores unquoted identifiers in uppercase. The optional Schema field therefore only accepts uppercase names — allowed characters are uppercase letters, digits, underscore, dollar sign and hash, and the name must start with an uppercase letter or an underscore. The interface uppercases the value as you type; API clients have to send it already normalised, otherwise the connection is rejected with a validation error.

Leave the field empty to work with fully qualified table names instead. When it is set, the platform switches the session's current schema so unqualified names resolve there.

Best practices for secure authentication

Use a dedicated user

Avoid using administrative or shared credentials
Create a dedicated technical user for the DQC Platform

Grant read-only permissions

The user needs to log in and to read the tables you want to check — nothing else. For example:

CREATE USER dqcreader IDENTIFIED BY "your_password_here";
GRANT CREATE SESSION TO dqcreader;
GRANT SELECT ON finance.customers TO dqcreader;
GRANT SELECT ON finance.orders TO dqcreader;

Grant SELECT per table or per schema as your governance rules require. The platform runs its queries directly against the database and does not create views, tables or any other objects, so the user needs no CREATE privileges beyond CREATE SESSION.

Whitelist the DQC Platform IP address

Allow inbound connections from the following static IP address in your firewall, security group, or Oracle Connection Manager rules:

3.123.94.228

For Oracle Autonomous Database or Oracle Cloud Infrastructure, add the address to the access control list of the database or to the security list of its subnet.

Troubleshooting

When DQC cannot connect to Oracle Database or load its tables, it shows the reason with a short fix and links to this section. Look up the beginning of the message:

Message in DQC	Likely cause	Fix
`Invalid username or password for user …`	ORA-01017: wrong user name or password	Check user name and password
`Account for user … is locked. …`	ORA-28000: the account is locked	Ask your DBA to unlock the account
`Service … not known by listener at …`	ORA-12514: wrong or unknown service name	Enter the service name, not the SID (see Service name, not SID)
`Oracle host … could not be resolved. …`	ORA-12545: the host name cannot be resolved	Check the host name
`Connection to …:… not possible. …`	ORA-12541/ORA-12170: no listener or a firewall blocks the DQC IP address	Check host and port, whitelist the DQC Platform IP address, or connect through the DQC Proxy
`Unable to connect to Oracle database. Reason: DPY-…`	A network or driver error of the thin driver, for example a refused connection or a server that requires Native Network Encryption	Act on the reason; for a refused connection check host, port and firewall
`Invalid Oracle schema name. Must be uppercase. …`	The schema field contains lowercase letters or invalid characters	Enter the schema in uppercase (see Schema names must be uppercase)
`The provided schema does not exist …`	No user with that schema name exists	Check the schema name
`Could not connect to the data source. Check the connection details …`	DQC could not classify the error of the connection test	Check every field of the form, the network access and the permissions described above
`Table not accessible anymore …`	The table was renamed, moved or deleted, or the user lost access to it after the last sync	Restore the table or the access, then resync the connector

Synchronization failed: when a sync cannot connect, the connector shows Failed on the Data sources screen and the badge links to this section. Edit the connector and click Load tables or Save: DQC tests the connection again and shows the current reason.
Tables missing from the table list: grant SELECT on the tables to the user (see Grant read-only permissions).
Still stuck? Write to support@dqc.ai with the connector name, the time of the attempt and the full message.

Notes

Encrypted connections are strongly recommended; Oracle Native Network Encryption and TLS are both supported by the driver
ORA-01017 means the user name or password is wrong, ORA-28000 means the account is locked
Virtual tables and custom SQL rules are available for Oracle connections
Learn more: Supported data sources
